Toilet seat covers remain in strong global demand for hotel projects, residential bathrooms and public sanitary‑ware markets. Manufacturers pursuing large‑volume output increasingly adopt 600‑ton double‑layer molding machines because they deliver double‑station forming under consistent high pressure.

However, improper operation frequently triggers typical pain points: bubbled parts, surface deformation, inconsistent quality between upper‑layer and lower‑layer outputs, low daily capacity and shortened machine service life.

Leveraging advanced Taiwanese technology and extensive manufacturing experience in melamine molding machines, Shunhao Factory offers comprehensive one-stop services and technical support to toilet seat cover machinery importers. In this article, Shunhao will deliver complete, parameter references, step by step operating procedures, and maintenance guidance.

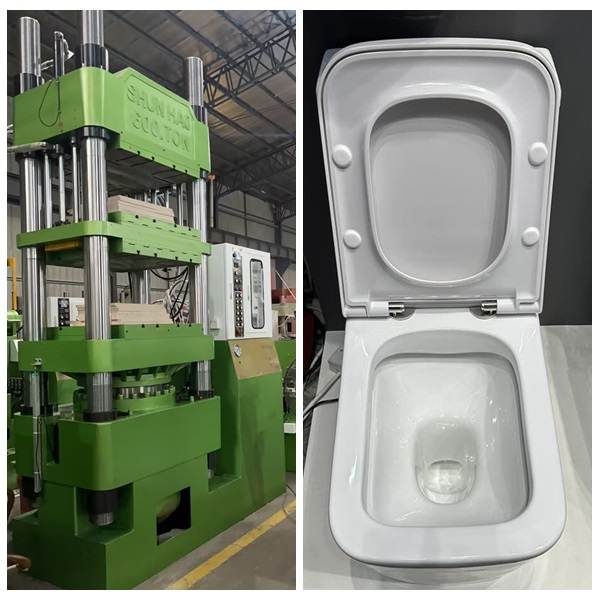

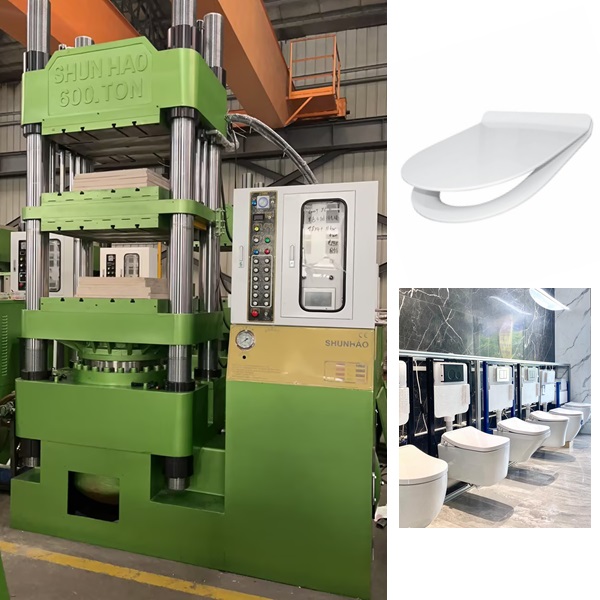

The 600‑ton double‑layer toilet seat lid compression machine adopts dual‑station synchronous hydraulic pressing. Two toilet‑seat blanks can be molded within one production cycle under rated 600‑ton clamping force. Stable pressure distribution guarantees high‑density, low‑deformation melamine toilet‑seat covers.

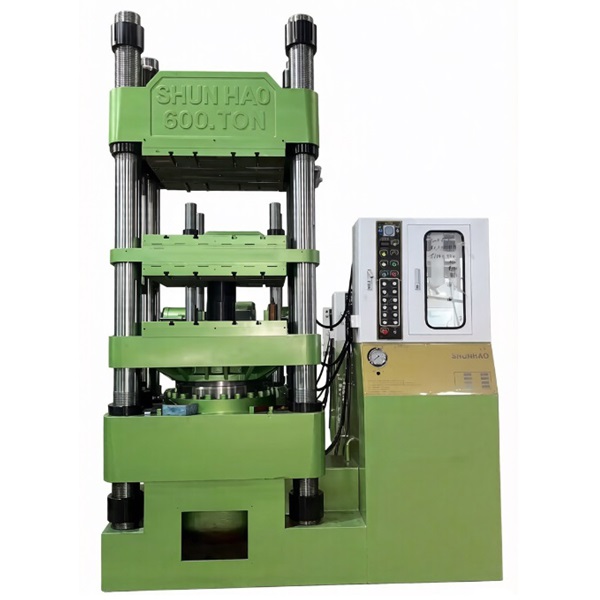

Technical Parameter from Shunhao Brand 600-Ton Double-Layer Toilet Seat Cover Molding Machine

• Main Cylinder Nominal Pressure: 600 Tons
• Maximum Working Pressure: 210kg/cm2
• Main Cylinder Piston Diameter: Ø600mm
• Heating Plate Size: 900*860mm
• Oil Hydraulic Pump: 21Mpa
• Motor Specifications: 15HP-6P-11.3KW
• Machine Total Power: 31.7KW
• Machine Size(length * width * height): 2.6*1.5*3.57M
• Machine Weight: 13000KGS

Step by Step Standard Operation Guide

1. Power on Self Inspection & Mold Preheating

Switch on power and air supply. Allow machine to finish self-diagnosis. Set target mold temperature. Wait until both double layer mold zones reach stable target temperature before feeding. Temperature inconsistency between two layers will directly cause uneven product quality.

2. Production Parameter Calibration

Set core running parameters: 600-ton molding pressure, pressure holding duration, heating time and cooling duration. Adjust synchronization parameters for dual stations to keep upper layer and lower layer actions aligned. Configure automatic feeding and ejection parameters based on toilet seat cover thickness and size.

3. Quantitative Feeding

Feed precise raw material weight for each mold cavity respectively. Avoid over feeding causing flash overflow or insufficient feeding leading to incomplete product shape. Ensure even raw material distribution inside both cavities.

4. 600-Ton High Pressure Synchronous Molding & Pressure Holding

Activate automatic production cycle. Hydraulic system builds up stable 600-ton clamping force. Both layers complete compression simultaneously. Maintain required pressure holding time to guarantee full cross link curing of melamine compound.

5. Circulating Cooling & Automatic Demolding

After pressure holding phase completes, start circulating water-cooling procedure. Sufficient cooling prevents finished part warping. Once cooling countdown finishes, molds open automatically and finished toilet seat covers eject out.

6. Initial Product Inspection & Cyclic Production

Take out finished pieces and run quick visual check for bubbles, deformation or incomplete edges. If first sample meets quality standard, the machine can enter continuous cyclic production. Clean mold surface residues after every cycle to avoid surface scratches on subsequent products.

Daily & Periodic Maintenance Specification

• Daily maintenance (per shift shutdown): Clean mold residual material; inspect oil leakage; check emergency‑stop function; tidy working area.
• Weekly maintenance: Lubricate moving transmission components; calibrate molding pressure reading; inspect heating‑circuit connection.
• Monthly maintenance: Full inspection of hydraulic system; check cooling‑water pipeline; tighten loose mechanical fasteners.
• Annual major maintenance: Replace hydraulic oil according to service cycle; anti‑rust protection for molds; inspect aging electrical components.

FAQ

Q1: Is double‑layer molding suitable for customized toilet seat cover production?

A1: Yes. It supports custom‑shaped toilet seat covers as long as matched double‑layer molds are installed. Note that both mold cavities need identical geometry to guarantee synchronization performance.

Q2: Do you have CE for the machines?

A2: Yes, CE certification is available.

Q3: How to send an inquiry to you?

A3: You can contact us by Email: machine@hongancn.com.

Standardized operation of the 600-ton double layer toilet seat cover moulding machine directly boosts production output, cuts defect percentage and protects your machinery investment. For manufacturers, mastering these operating and maintenance rules helps you maximize return on equipment investment.

Shunhao factory provides global customers with machine commissioning guidance, parameter customization, technical training and after sales support. Whether you are evaluating new equipment for factory expansion or seeking distributor cooperation resources, you can reach out to us for professional technical support.
